LT-1500
LONGTERM
84411000
Automatic Non-woven Fabric Roll To Sheet Cutting Machine

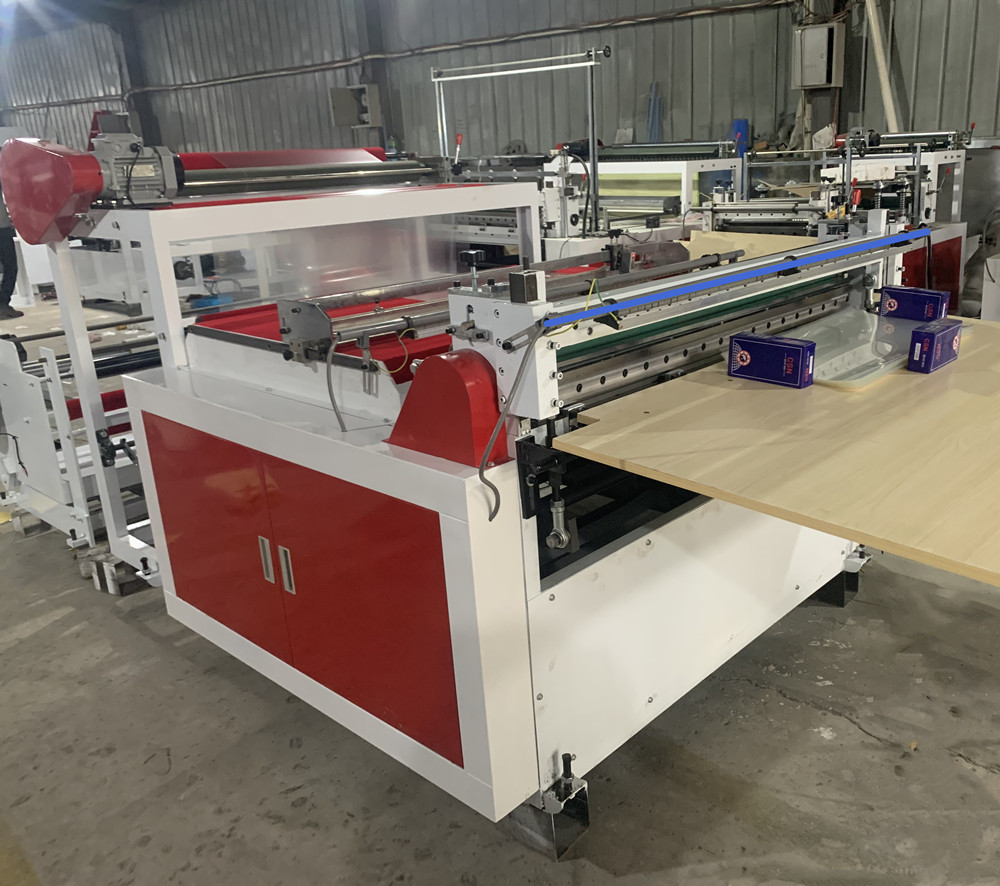

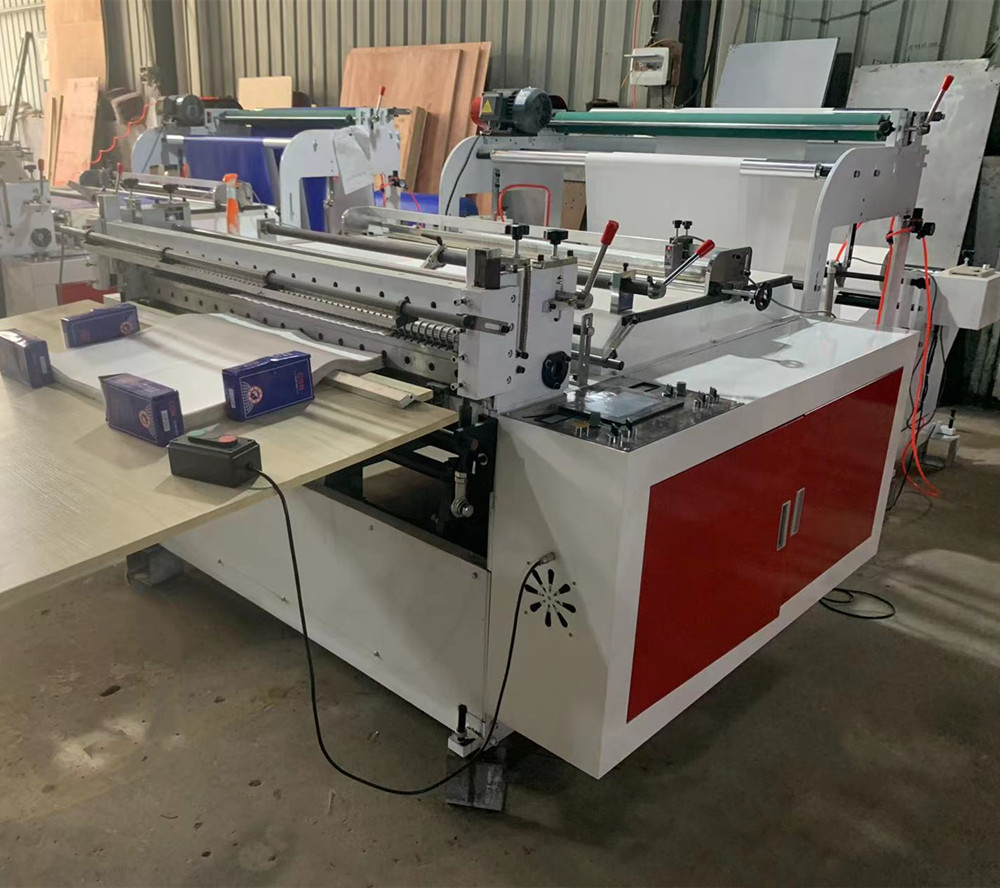

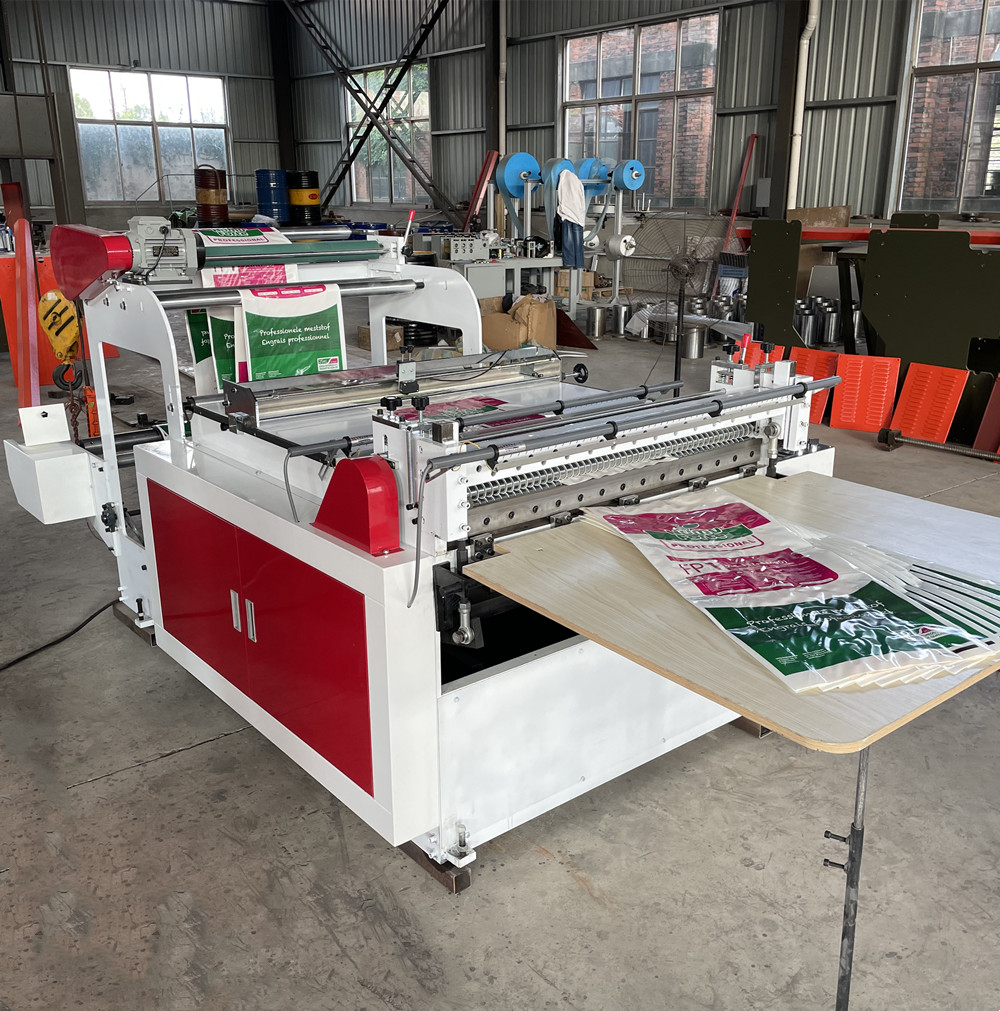

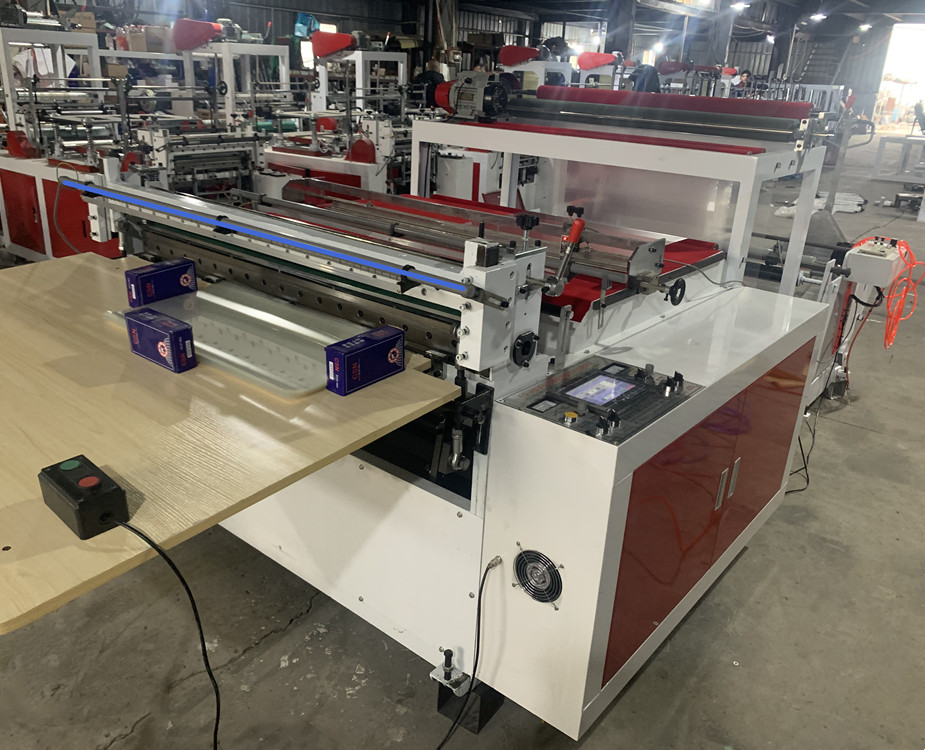

Machine photos
Application of machine
Sheet cutting for all kind paper, foam, aluminum foil, copper foil, PET, PC, PVC, PCB, FPC, Lithium battery film, flannelette, metal foil and all kinds of material in roll form. To cut material from rolls to sheets.
If you need other functions, like slitting, automatic stacking, finished products pulling, pls let me know. Our machines are customized.
Features
1. A combination of PLC and servo motor;
2. Eye mark device for optional;
3. Two accessories, static eliminator and conveyor belt for stacking, for optional;
4. Cutting length is accurate;
5. Operation is easy;
6. Waste rate is low;
Machine technical parameter
1. Maximum cutting width: 1000-1800mm
2. Machine speed: 0-100cut/min
3. Machine precision: 0.2mm
4. Cutting length: 0-3000mm
5. Cutting thickness: 0-10mm(according to different materials)
6. Maximum diameter of unwinding roll: 800mm
7. Maximum weight of unwinding roll: 1000kg
8. Motor power: 9kw
9. Voltage: customized
10. Machine weight: 1050-2000kg
Item Number | LT-1000 | LT-1200 | LT-1300 | LT-1500 | LT-1600 |
Cutting width | 0-920mm | 0-1120mm | 0-1220mm | 0-1420mm | 0-1520mm |
Min slitting width | 50mm | 50mm | 50mm | 50mm | 50mm |
Cutting length | 0-5000mm | 0-5000mm | 0-5000mm | 0-5000mm | 0-5000mm |
Cutting speed | 10-140 cut/min | 10-140 cut/min | 10-140 cut/min | 10-140 cut/min | 10-140 cut/min |
Cutting precision | 0.2mm | 0.2mm | 0.2mm | 0.2mm | 0.2mm |
Max. unwinding diameter | 1200mm | 1200mm | 1200mm | 1200mm | 1200mm |
Total Power | 4.5kw | 5.5kw | 6.5kw | 7.5kw | 8.5kw |
Machine dimension | 5600x1420x1280mm | 5600x1620x1280mm | 5600x1720x1280mm | 5600x1920x1280mm | 5600x2020x1280mm |
Machine weight | 1100kg | 1300kg | 1400kg | 1550kg | 1700kg |
The advantages of Non-woven Fabric Roll To Sheet Cutting Machine
Non-woven fabrics are widely used in various fields due to their excellent characteristics such as good water absorption, air permeability, and softness. With the increasing demand for non-woven products, the production process of non-woven fabrics has also been continuously improved and optimized. One of the essential processes is the cutting and slitting of non-woven rolls, which plays a crucial role in the production process.
Traditional cutting methods mainly depend on manual cutting, which is time-consuming, inefficient, and has a high error rate. With the development of technology, non-woven roll cutting and slitting with strip cutting has become more and more popular in the market. Compared with traditional manual cutting methods, non-woven roll cutting and slitting with strip cutting has the following advantages:
1. High cutting accuracy: Non-woven roll cutting and slitting with strip cutting can reach a high cutting accuracy. The cutting width can be controlled accurately and can reach a minimum of 10 mm, which can meet various production needs.
2. High efficiency: Non-woven roll cutting and slitting with strip cutting is an automated process. Once the roll is set up, the cutting and slitting process can start automatically, which can greatly improve production efficiency.
3. Low waste: Non-woven roll cutting and slitting with strip cutting can minimize material waste. The strip cutting method can cut the material precisely, which can greatly reduce the waste of materials in the production process and improve production efficiency.
4. Easy operation: Non-woven roll cutting and slitting with strip cutting is easy to operate, which can save time in the training process for operators. The equipment can be automatically controlled, and the operation is simple and intuitive.
5. Wide range of applications: Non-woven roll cutting and slitting with strip cutting can cut various non-woven fabrics, such as spunlace non-woven fabrics, needle punched non-woven fabrics, and thermal bonded non-woven fabrics, etc. It is widely used in industries such as medicine, hygiene, and household items, etc.
In general, non-woven roll cutting and slitting with strip cutting is a high-tech cutting system that can improve production efficiency and reduce production costs. It is an essential process for non-woven fabrics, which can provide high-precision cutting services for the non-woven industry.
